Cutting Edge Equipment

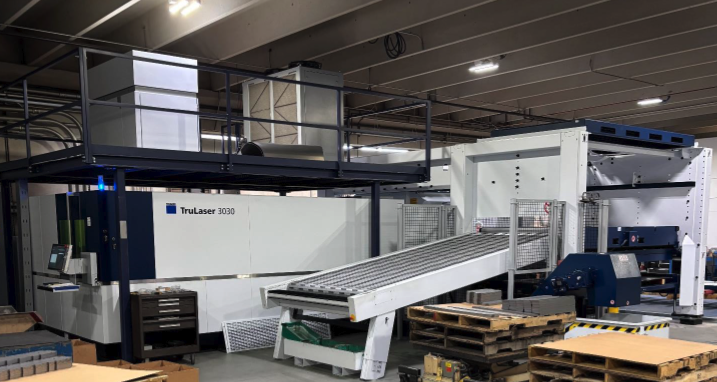

Specifications

• 10,000 Watt TruDisk 10001 Fiber Laser
• Working Range:
  • X axis: 60”
  • Y axis: 120”
• Automated Sheet Loader
• Finished Parts Conveyor

Specifications

• 6000 Watt Fiber Laser
• Max Positioning Speed Parallel Axis X/Y: 120 m/min.
• Max Simultaneous Positioning Speed: 170 m/min.
• Bilateral Repeatability of Positioning of One Axis R: 0.025 mm Avg.
• Edge Detection Accuracy: +/- 0.5 mm.
• Max Cutting Sheet Thickness (Steel): 25 mm
  • Will cut brass up to 0.590"
  • Will cut copper up to 0.470"

Specifications

More than just material loading and unloading! The two cassettes on this machine allow versatility —  we can stage different materials and/or thicknesses of material, and then load and unload the material, skeleton and parts. Faster processing allows the Bystronic Bytrans-Extended to be lightly manned, freeing up the operator to do a secondary operation.

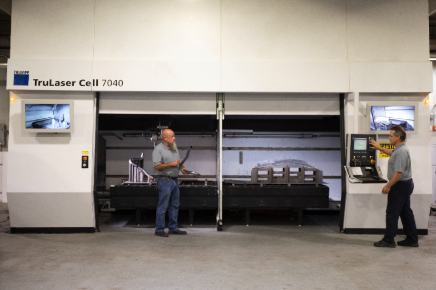

Specifications

• 3000 Watt TruDisk Fiber Laser
• Working Range:
  • X axis: 4000 mm (157.4798 in.)
  • Y axis: 1500 mm (59.05494 in.)
  • Z axis: 750 mm (29.52747 in.) Dynamic Cutting
  • Optics +/- 10 mm (0.39369 in.)
• Axis Speed:
  • X/Y/Z Linear Axes: 100 m/min (3937 ipm)
• Simultaneous Axes:
  • 173 m/min (6811 ipm)
• Max Repeatability:
  • X/Y/Z Linear Axes 0.03 mm (0.001181 in.) Rotation Axes B/C: 0.005 deg

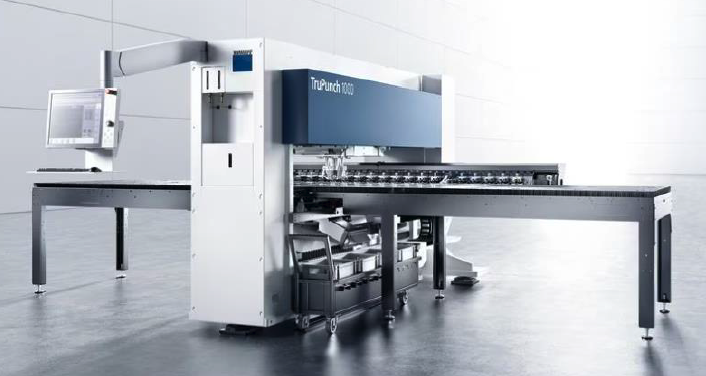

Specifications:

• 18.5 Ton Capacity CNC Punch
• Working Range:
  • X axis: 60”
  • Y axis: 120”
• 3” Clamp Strip
• Cutting and Forming Capability
• Rapid Perforation Ability (0.4sec per hit on 1” center)
• Rotating Head
• Non-active Die
• Automated Parts Chute
